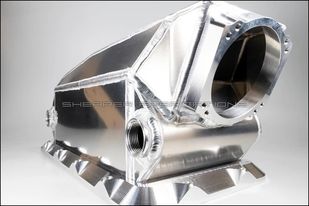

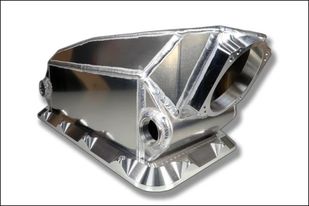

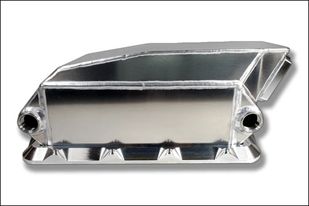

Low Profile HiRam Cooler, 2000hp

Gearheads are always pushing stuff to their limit. So we introduced this 1" thicker HiRam cooler for those of you who like to push things and have the room to fit it.

Designed to mount to intakes utilizing the Holley Hiram flange pattern. The integrated sheetmetal plenum saves 2" of vertical height and moves the throttle body back nearly 4" towards the firewall. The CNC'd 105mm throttle body flange features an internal bellmouth and both Ford and LS bolt patterns!

Overall height from the lower intake manifold mating surface to the top of the throttle body flange is 8.125"!

-Largest Intercooler available for the Hi-Ram Intake!!
-Billet Aluminum Flanges.
-8.125" Overall height.
-16ORB Water Connections.
-O-Ring included to properly seal the lid.
-12pt alloy steel bolts.
-Made in the USA!

Note!! If you are using this intercooler with a HiRam manifold with the OLD bolt pattern you will need to order our Retrofit Parts Kit<click here>!!
