Shearer Fab Low Profile HiRam Cooler, 1800HP

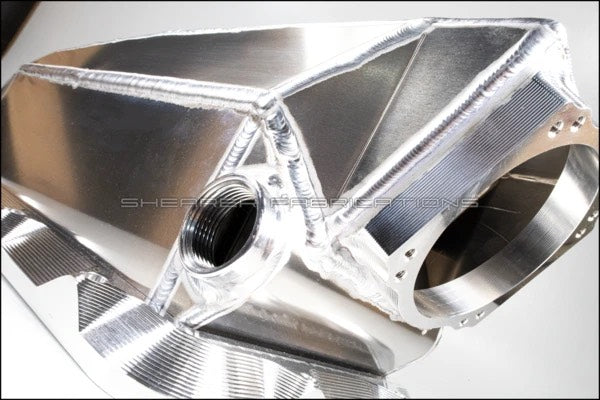

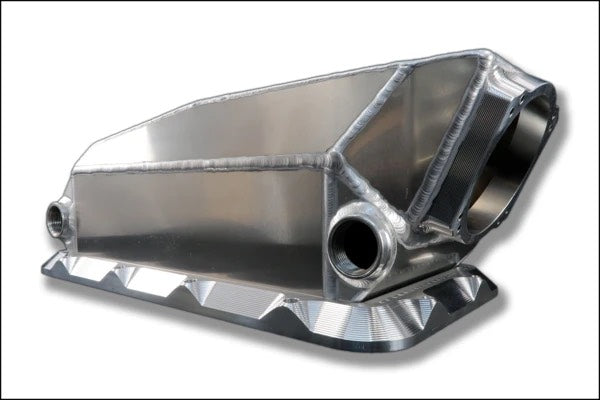

This Low Profile cooler saves tons of room with no performance disadvantage! Utilizing the same core as our 1800hp HiRam Cooler. We weld a sheetmetal plenum with integrated throttle body flange onto the topside of the intercooler.  In comparison to the sandwich intercooler with the cast lid this saves 1.7" of vertical height, moves the throttle body back 4" and saves inches of room on backside of the cowl area. The CNC'd 105mm throttle body flange features an internal bellmouth and both Ford and LS bolt patterns!

Overall height from the lower intake manifold mating surface to the top of the throttle body flange is 7.125"!

Note!! If you are using this intercooler with a HiRam manifold with the OLD bolt pattern you will need to order our Retrofit Parts Kit<click here>!!

-Billet Aluminum Flanges.
-7.125 Overall height.
-16ORB Water Connections.
-O-Ring included to properly seal the lid.
-12pt alloy steel bolts.
-Made in the USA!

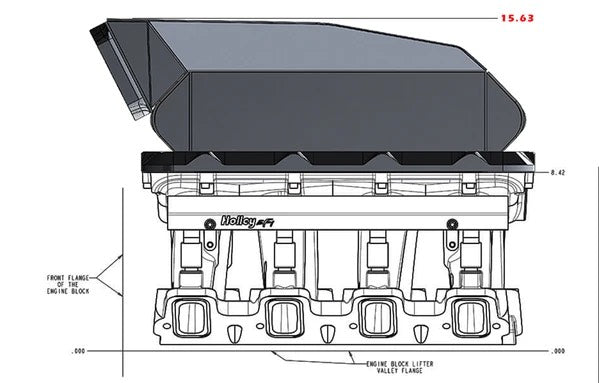

This is a comparison photo of of the Low Profile Intercooler versus using our Sandwich Intercooler with Holley's Cast Lid. Note the lower overall height and the moved back position of the Throttle Body.
